FROM FOIL TO EDGE TO BOARD.
ONE COLOR. ONE SYSTEM.
We don't just supply materials separately -- we match surface foil, edge banding, and substrate panels as one synchronized color system. ΔE ≤ 1.0 verified under D65 lighting. One supplier, one container, one invoice.
THREE SUPPLIERS.
THREE STANDARDS.
VISIBLE DEVIATION.
Most furniture manufacturers source edge banding from Supplier A, surface foil from Supplier B, and panels from Supplier C. Each supplier uses a different color standard, a different batch process, and a different measurement method. The result: visible color deviation on the finished cabinet. The edge doesn't match the surface. The surface doesn't match the panel. Rework, waste, and customer complaints follow.
Edge Supplier
Foil Supplier
Panel Supplier
Disconnected · Unverified · Mismatched
ONE LIBRARY.
ONE VERIFICATION.
ZERO DEVIATION.
YipDeco coordinates all three materials from one synchronized color library. Edge banding, surface foil, and laminated panels are matched at ΔE ≤ 1.0 under D65 standard lighting -- in the same production window, verified by spectrophotometer before shipment. One point of contact. One quality standard. Zero deviation.
Edge
Foil
Panel
Connected · Verified · Synchronized
FOUR STEPS TO PERFECT MATCH
Tell Us Your Requirement
Share your target color (panel brand decor code, Pantone, RAL, or physical sample), substrate type (MDF, plywood, chipboard), panel size, and required certifications.
We Match All Three
Our lab develops the surface foil, edge banding, and panel lamination simultaneously from the same color reference. Spectrophotometer verification under D65: ΔE ≤ 1.0 between all components.
Process Validation
We provide lamination parameters for your specific equipment: adhesive type (PUR vs EVA), roller pressure, temperature settings, and feed speed. 15 years of machinery experience means we've already tested what you're about to run.
One Container, One Invoice
Surface foil + edge banding + laminated panels ship together from Foshan. One color standard across all materials. One shipping document. One point of contact.
THREE MATERIALS. ONE COLOR SYSTEM.

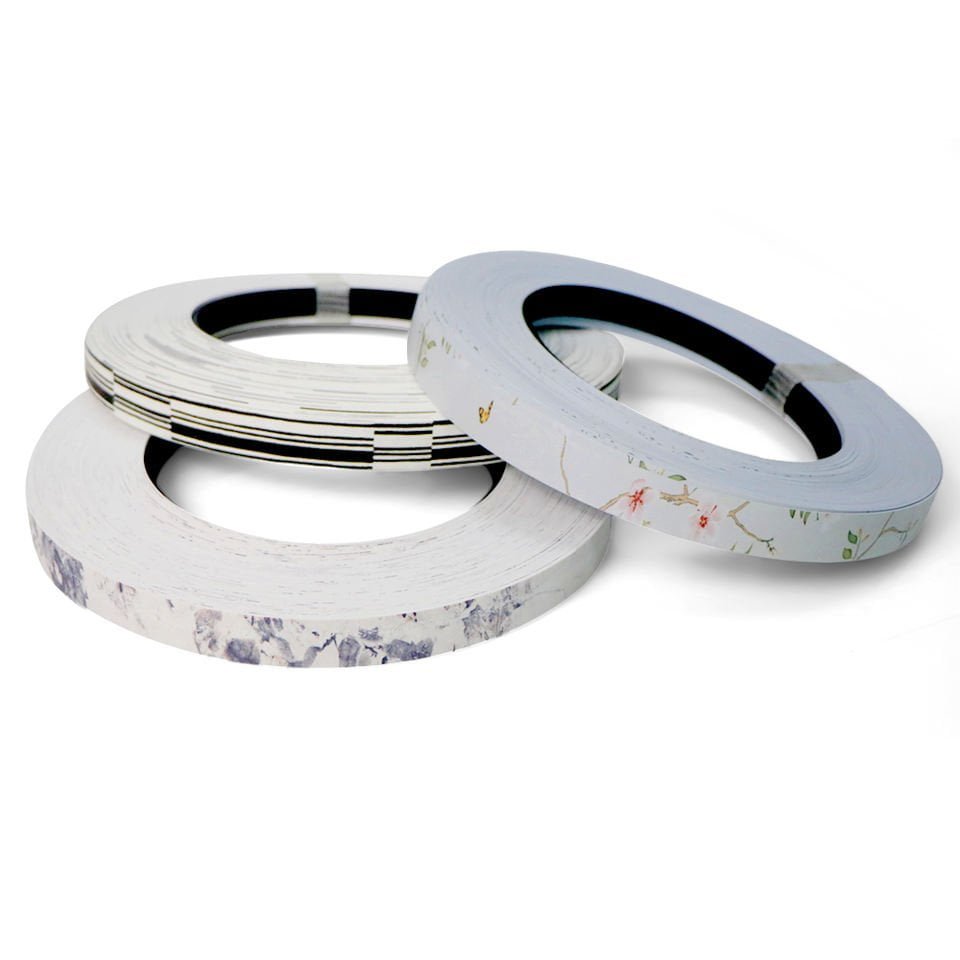

Edge Banding
PVC, ABS, PP, acrylic, laser, veneer. 600+ stock colors. Thickness 0.4-3.0mm. Width 12-500mm. All colors synchronized with surface foil at ΔE ≤ 1.0.
View Edge Banding
Surface Foil
PET mirror foil, decorative PET, acrylic mirror sheets. High-gloss ≥ 90 GU. Scratch resistant ≥ 2H. Available as roll, sheet, or pre-laminated. Color-matched to edge banding library.
View Surface Foil
Substrate Panels
MDF, plywood, chipboard, OSB. Pre-laminated with our surface foil. Sizes 1220×2440 / 1220×2745mm. CARB P2, E0/E1, FSC available.
Panel matching is a sourcing service -- we coordinate with verified substrate manufacturers. Panels are not stocked independently.
AVAILABLE SUBSTRATES
| Substrate | Standard Sizes | Thickness Range | Certifications | Best For |
|---|---|---|---|---|
| MDF | 1220×2440 / 1220×2745 mm | 3-25 mm | CARB P2, E0/E1, FSC | Cabinet doors, wardrobe fronts, display panels |
| Plywood | 1220×2440 mm | 3-18 mm | CARB P2, FSC | Kitchen cabinets, bathroom vanities (moisture) |
| Chipboard / Particleboard | 1220×2440 mm | 9-25 mm | CARB P2, E0/E1 | Cabinet carcasses, shelving, cost-effective builds |
| OSB | 1220×2440 mm | 9-18 mm | E1 | Structural backing, industrial applications |
All substrates laminated with our PET surface foil and matched to our edge banding at ΔE ≤ 1.0.
WE DON'T JUST SUPPLY MATERIALS.
WE UNDERSTAND THE PROCESS.
Our founder spent 15 years installing and calibrating flat lamination and edge banding machines. This process knowledge is built into every panel matching recommendation.

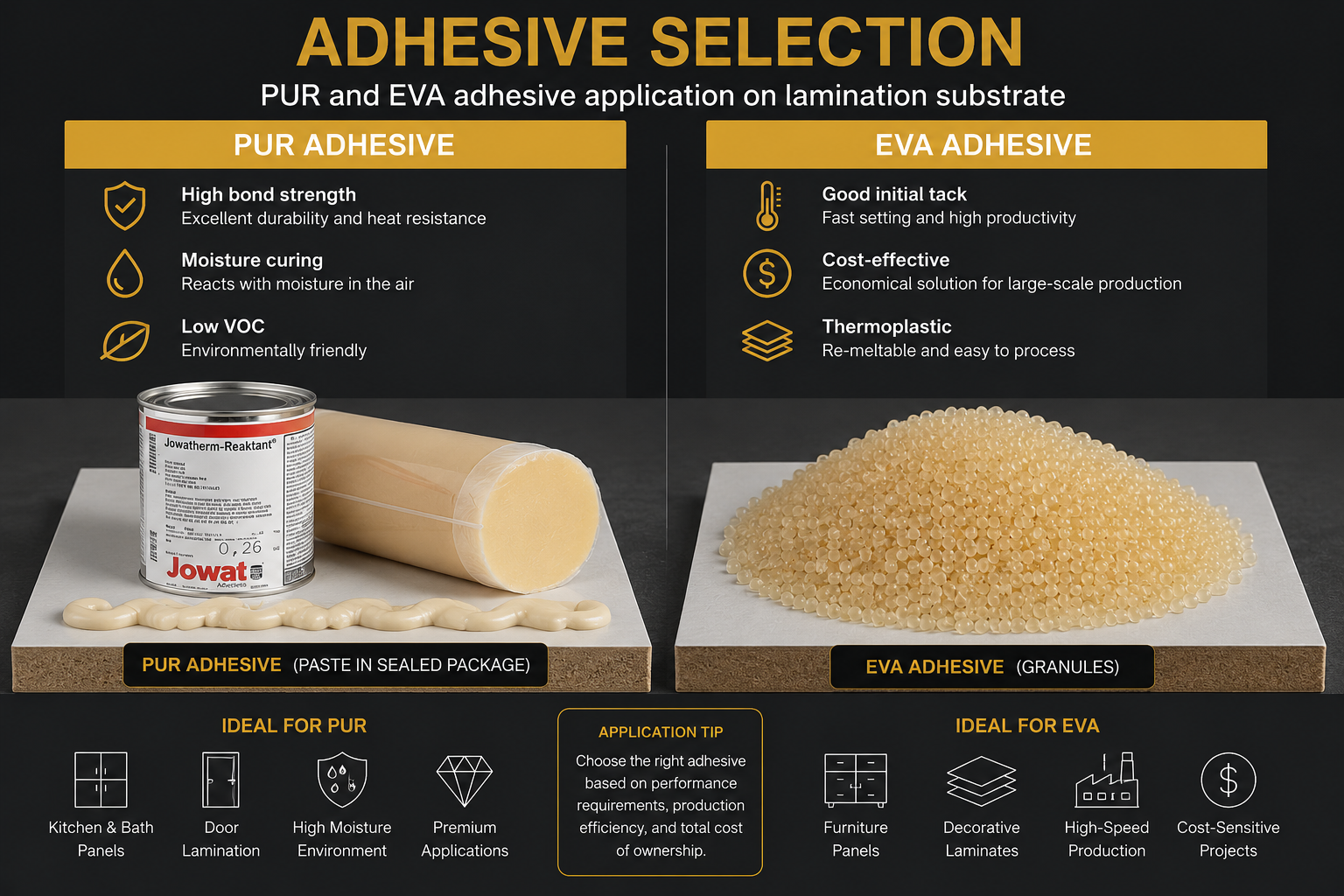

Adhesive Selection
PUR vs EVA -- we recommend the right adhesive for your substrate, foil type, and production environment. PUR for moisture-critical applications (kitchen, bath). EVA for standard furniture. We specify gram weight, open time, and activation temperature.

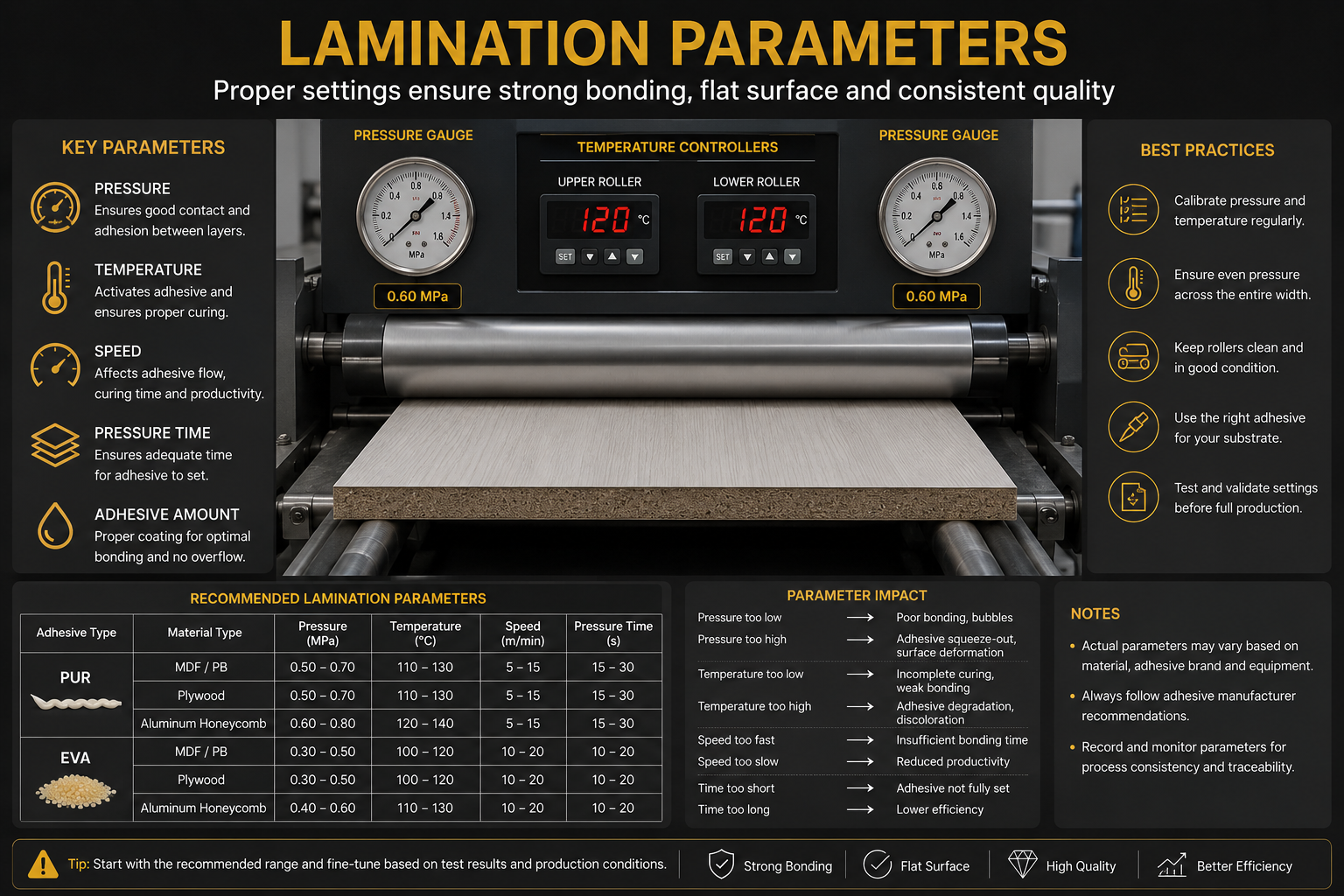

Lamination Parameters
Roller pressure, nip gap, line speed, and temperature settings -- calibrated to your specific equipment model. We've commissioned hundreds of lamination lines. We know what settings produce clean bonds versus bubble defects.
Surface Tension & Bonding
Foil-to-substrate adhesion depends on surface energy matching. We test surface tension (dyne level) on every substrate batch to ensure lamination bond strength meets production requirements. No delamination. No bubbles. No lifting.

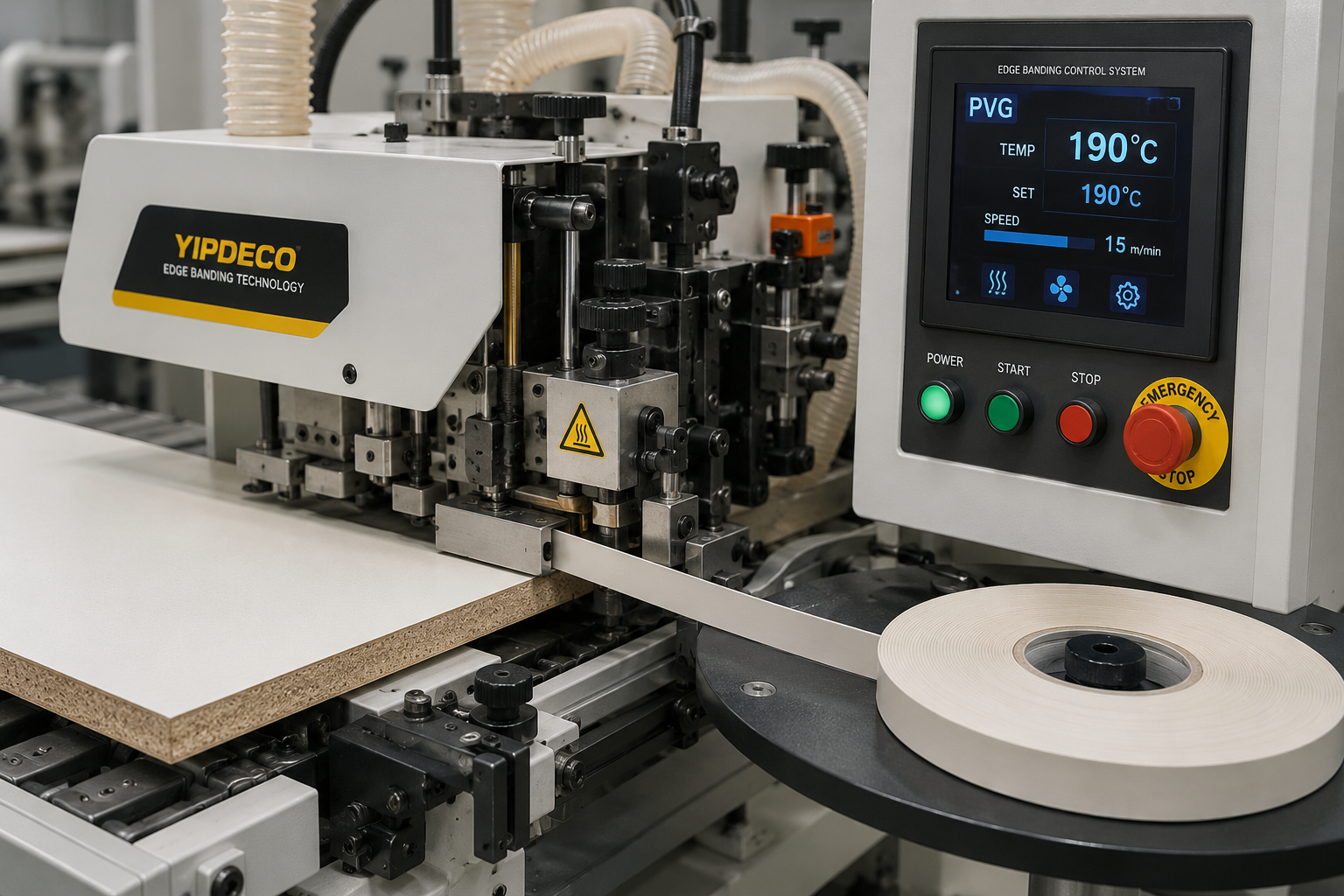

Edge Banding Compatibility
The edge banding must be formulated to match the foil color AND perform on your edge banding machine. We provide recommended pot temperature, feed speed, blade angle, and glue application rate for every material we supply.
MATCHED MATERIALS FOR EVERY FURNITURE TYPE

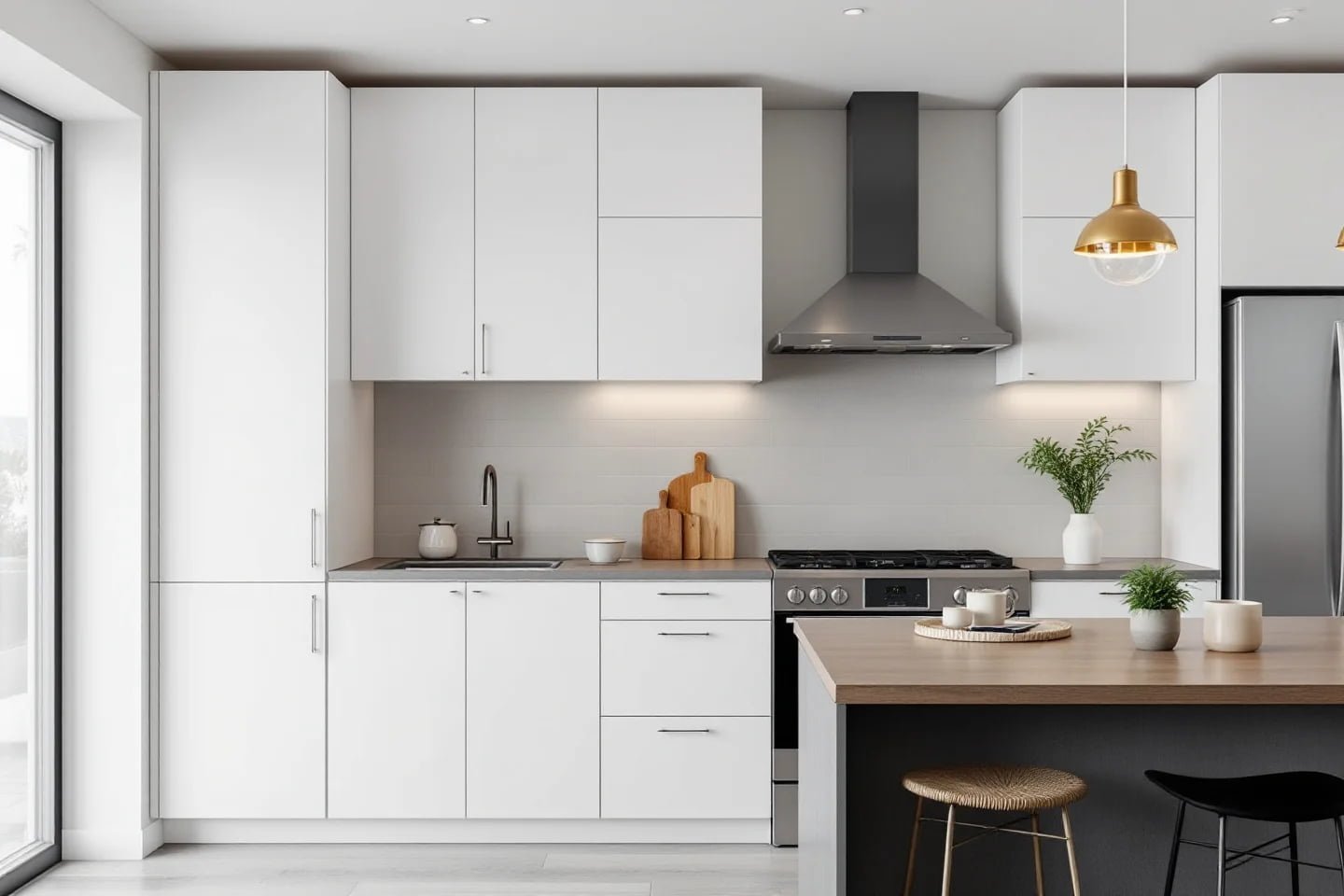

Kitchen Cabinets
PET mirror foil (white/grey) + ABS edge banding + moisture-resistant MDF or plywood.
Key: Heat resistance near ovens, moisture resistance near sinks.

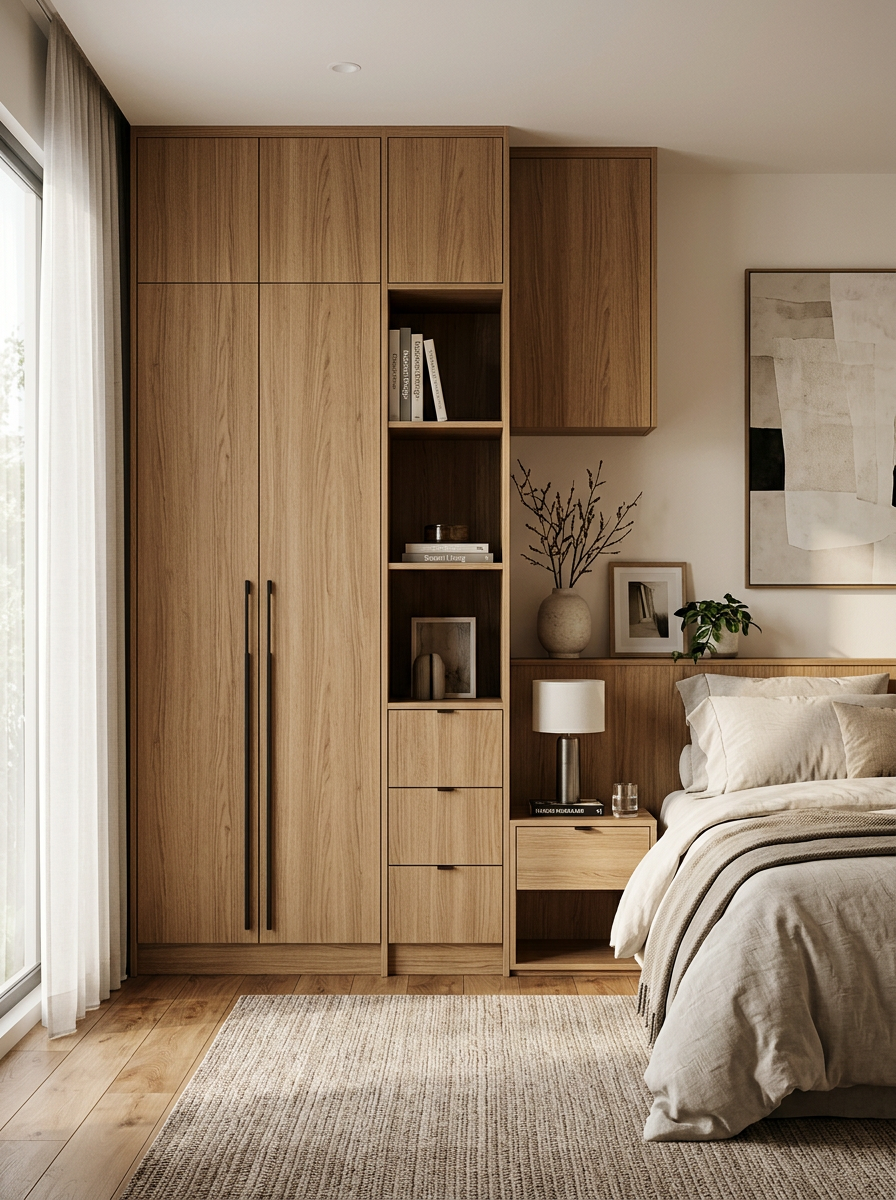

Wardrobes & Closets
PET mirror foil (high-gloss) + woodgrain edge banding + standard MDF.
Key: Large panel surfaces where color deviation is most visible.

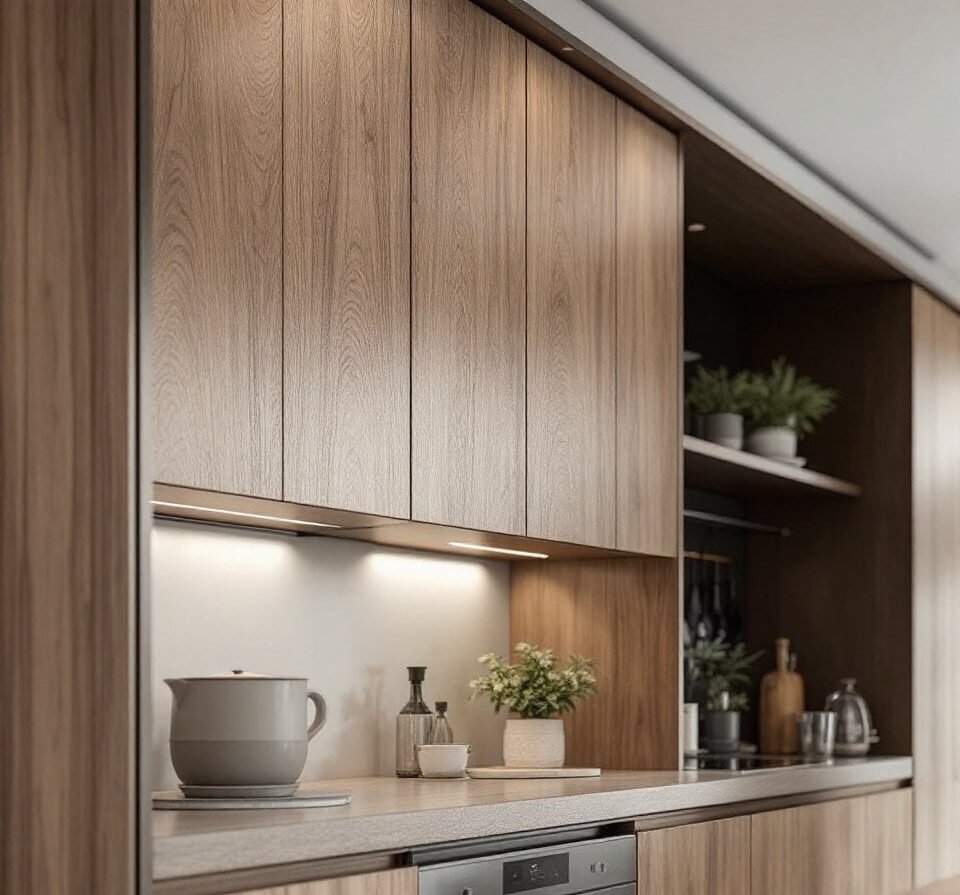

Bathroom Vanities
PET foil (anti-moisture) + PP edge banding + moisture-resistant plywood.
Key: Sustained humidity exposure. PUR adhesive recommended.
Office Furniture
Solid color PET foil + ABS edge banding + chipboard.
Key: Wear resistance for high-use desks and storage. Scratch ≥ 2H required.

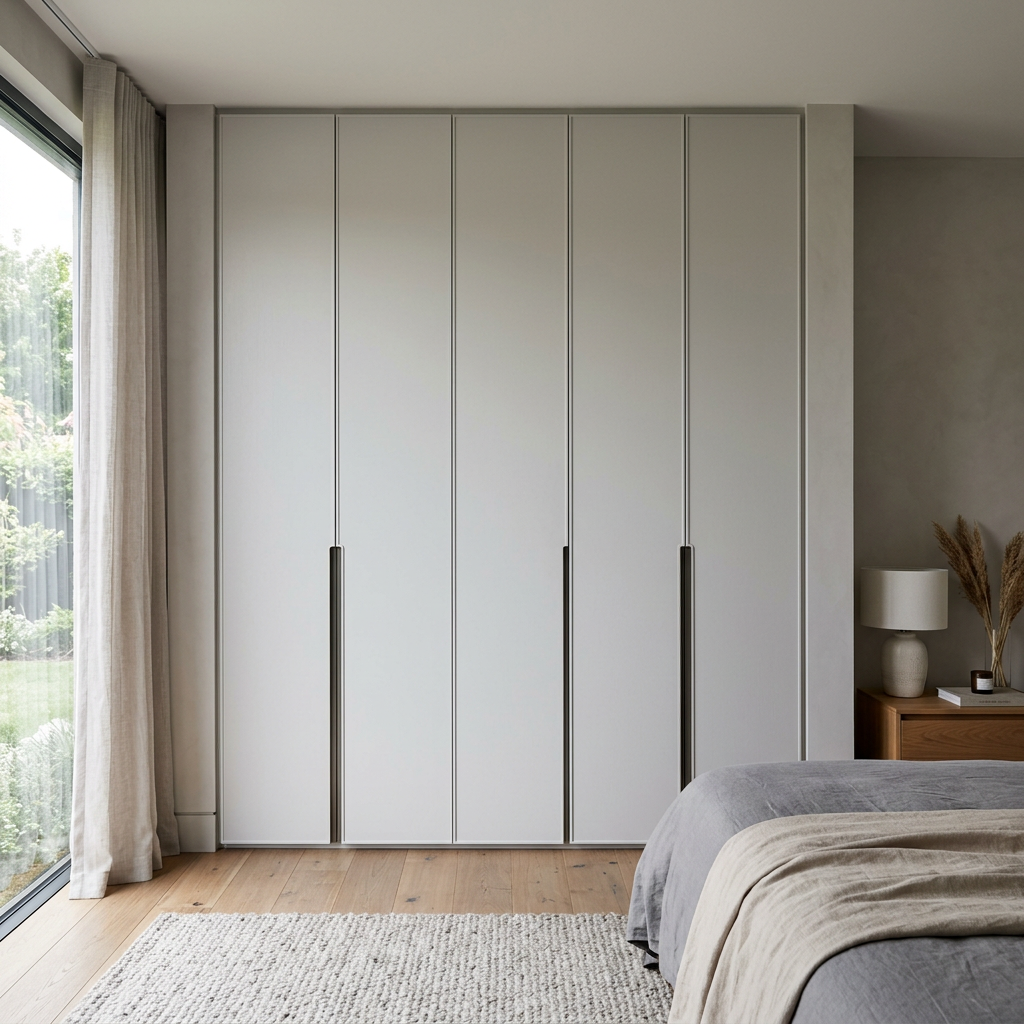

Hotel & Hospitality
Champagne gold / woodgrain PET foil + matched edge banding + MDF.
Key: Project volumes, strict delivery timelines, compliance documentation for tender.

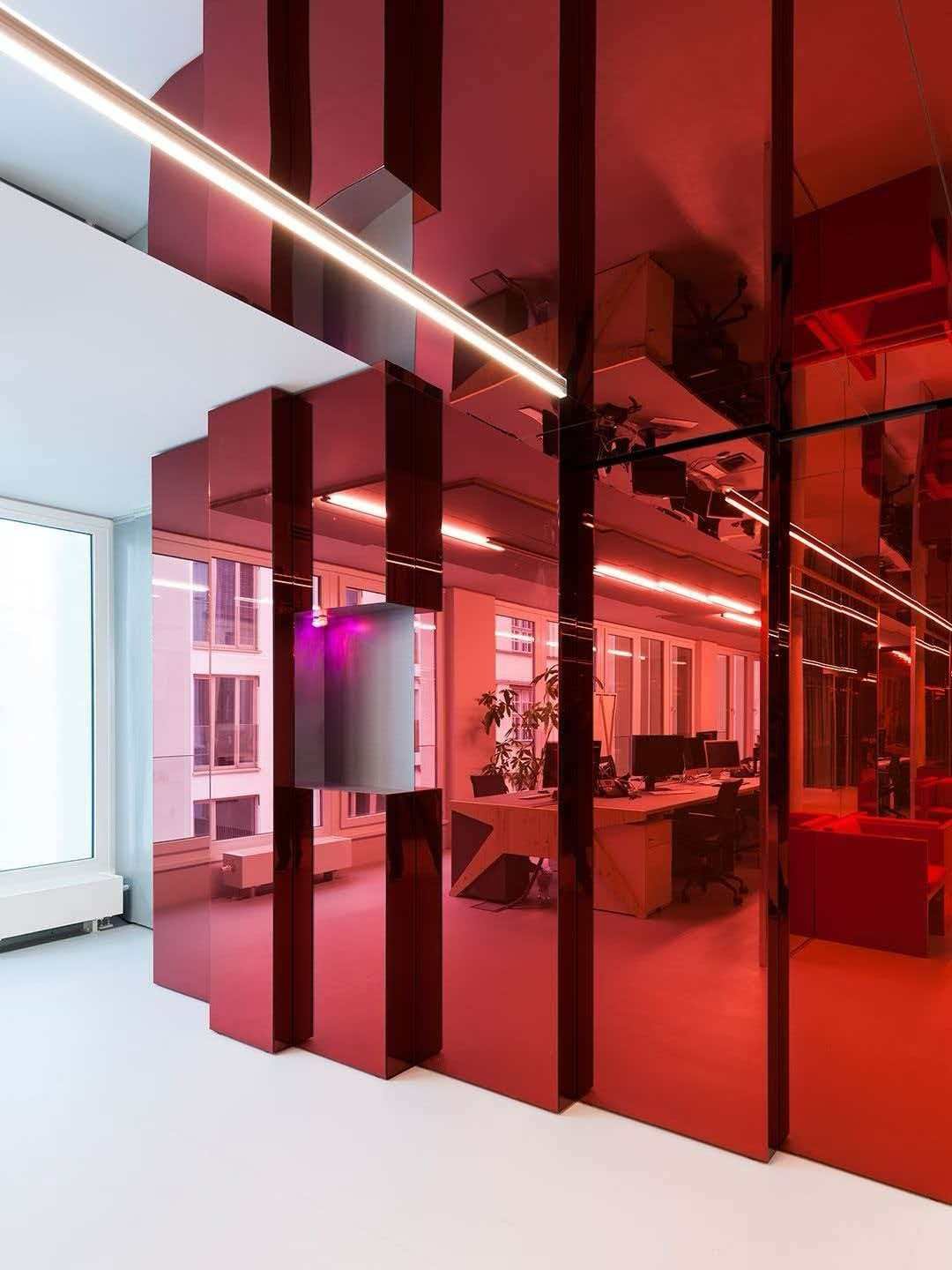

Retail & Commercial Display
Acrylic mirror sheets or PET mirror foil + acrylic edge banding + MDF.
Key: Maximum visual impact, mirror reflection quality, brand presence.
HOW WE GUARANTEE ΔE ≤ 1.0
Reference Sample Received
Your panel decor code, physical sample, or color reference arrives at our lab.
Spectral Analysis
ChromaVision PRO spectrophotometer measures Lab* values under D65 standard illuminant.
Triple Match Development
Edge banding, surface foil, and panel lamination developed to same Lab* target simultaneously.
Cross-Component Verification
Edge vs foil vs panel measured against each other: ΔE ≤ 1.0 between ALL combinations.
Production COA
Every bulk shipment includes Certificate of Analysis with batch-specific ΔE measurements.
We don't estimate color. We measure it. Every batch. Every component.
THIRD-PARTY VERIFIED
Edge Banding
REACH
RoHS
SGS
Surface Foil & Panels
CARB P2
E0/E1
FSC
ISO 9001
All certifications third-party verified. Test reports available with every shipment upon request.
READY TO MATCH YOUR PANEL?
Send us your panel brand, decor code, or a physical sample. We will recommend the right combination of edge banding + surface foil + substrate -- and tell you the exact machine settings to run it.
info@yiplastic.com · We respond within 24 hours
