SURFACE & EDGE QUALITY
YOU CAN VERIFY.
Edge banding and surface foil -- both tested to the same standard, from the same color library. Every batch measured. Every result documented. We share the data because we stand behind it.
8-STEP QUALITY CONTROL --
EDGE BANDING & SURFACE FOIL
From raw material intake to final packing -- every step documented, measured, and traceable. Covering both edge banding extrusion and surface foil lamination.
Raw Material Inspection
Incoming Quality Gate
Color Matching
ΔE ≤ 1.0 Verification
Extrusion Monitoring
Surface & UV Coat
Adhesion & Flexibility
Lamination Monitoring
Gloss & Scratch Test
Adhesion & Thermal
Chemical Compliance
Regulatory Verification
Final Inspection & Packing
Shipment Release Gate
TESTED BY HAND.
PROVEN BY STANDARDS.
Lab specs mean nothing if the product fails on your production line. We test every batch under real conditions.

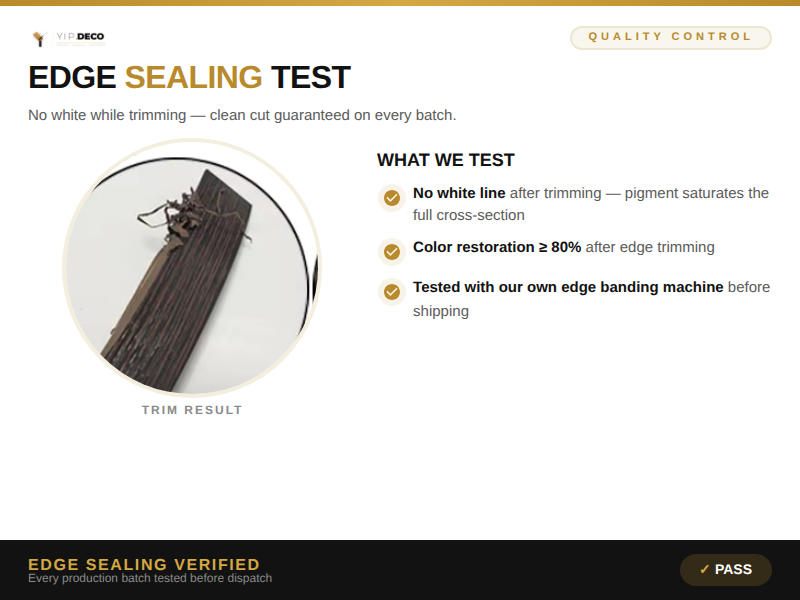

Edge Sealing Test
No white line after trimming -- clean cut guaranteed. Every color tested on standard edge banding machines before batch approval.

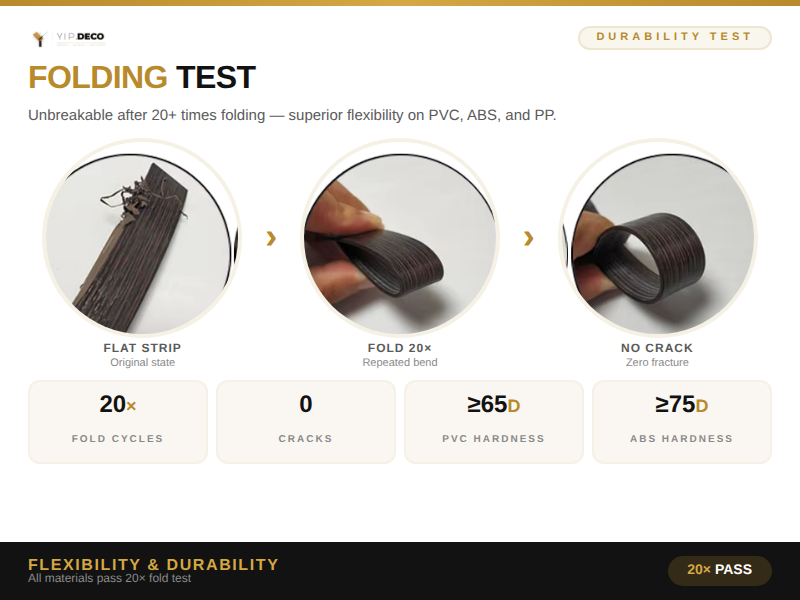

Folding Test
Unbreakable after 20+ folds -- superior flexibility. Tested at room temperature on thickness ≤ 1.5 mm samples.

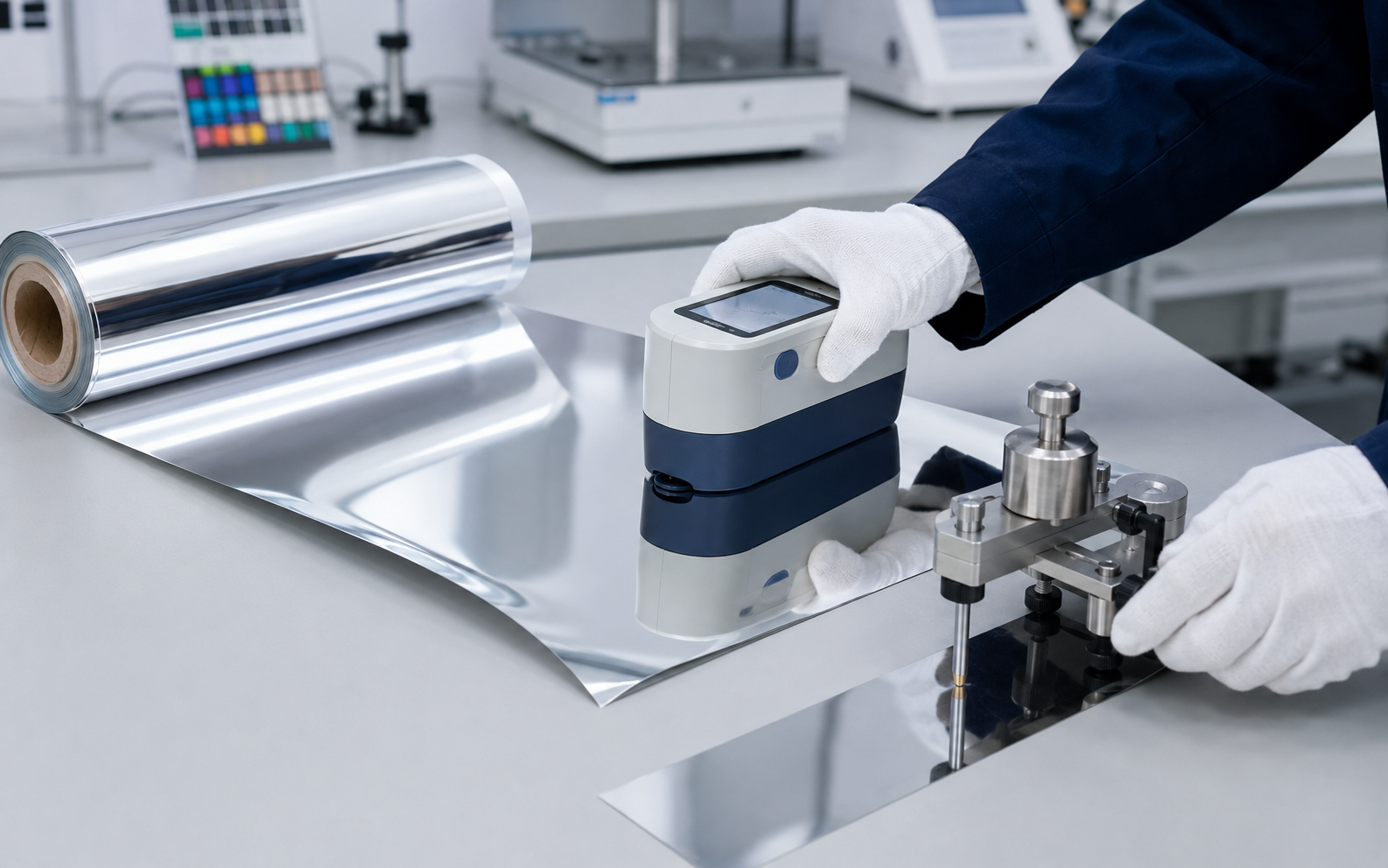

Gloss & Scratch Test
PET mirror foil gloss measured at ≥ 90 GU (60°). Scratch hardness verified at ≥ 2H pencil standard. Consistent quality across every production batch.

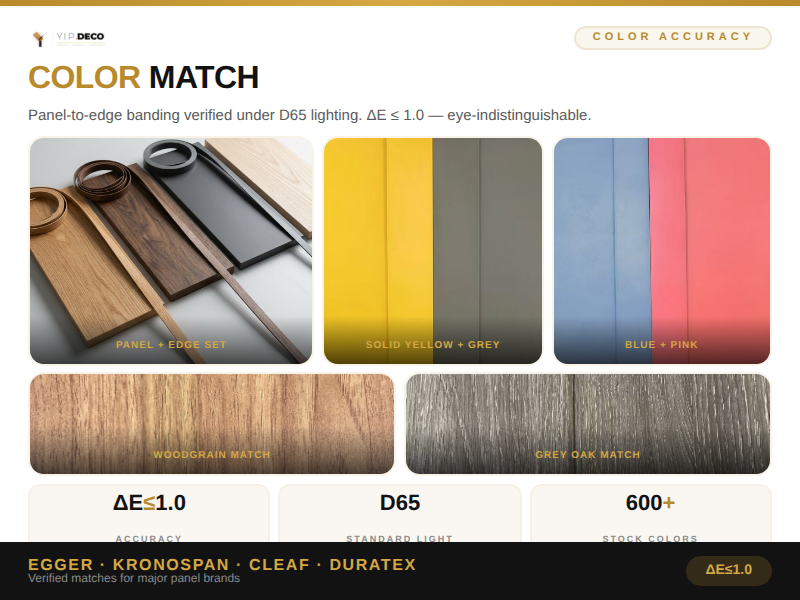

Color Match Testing
Every batch verified with spectrophotometer under D65 standard illuminant. Edge banding AND surface foil must achieve ΔE ≤ 1.0 -- documented per shipment.
KEY QUALITY METRICS --
EDGE BANDING & SURFACE FOIL
Every metric verified per batch. Test reports ship with your order.
| Property | Edge Banding | Surface Foil | Status |
|---|---|---|---|
| Color Accuracy | ΔE ≤ 1.0 | ΔE ≤ 1.0 | ✔ Pass |
| Gloss Level | Per finish type | ≥ 90 GU (mirror) | ✔ Pass |
| Scratch Resistance | ≥ 2H (UV coated) | ≥ 2H pencil | ✔ Pass |
| Peel Strength | ≥ 40 N/18 mm | Cross-cut pass | ✔ Pass |
| Fold Resistance | 20× no crack | N/A | ✔ Pass |
| Edge Trim | No white line | N/A | ✔ Pass |
| Thermal Stability | 60°C / 2 hr | 60°C / 2 hr | ✔ Pass |
| UV Resistance | Grey ≥ 4 (500 hr) | Grey ≥ 4 (500 hr) | ✔ Pass |
| Thickness Tolerance | ± 0.05 mm | ± 0.02 mm | ✔ Pass |
| SVHC | ND or ≤ 0.1% | ND or ≤ 0.1% | ✔ Pass |
| Formaldehyde | N/A (not applicable) | CARB P2 (panels) | ✔ Pass |
All values represent minimum guaranteed performance. Actual results typically exceed stated values.

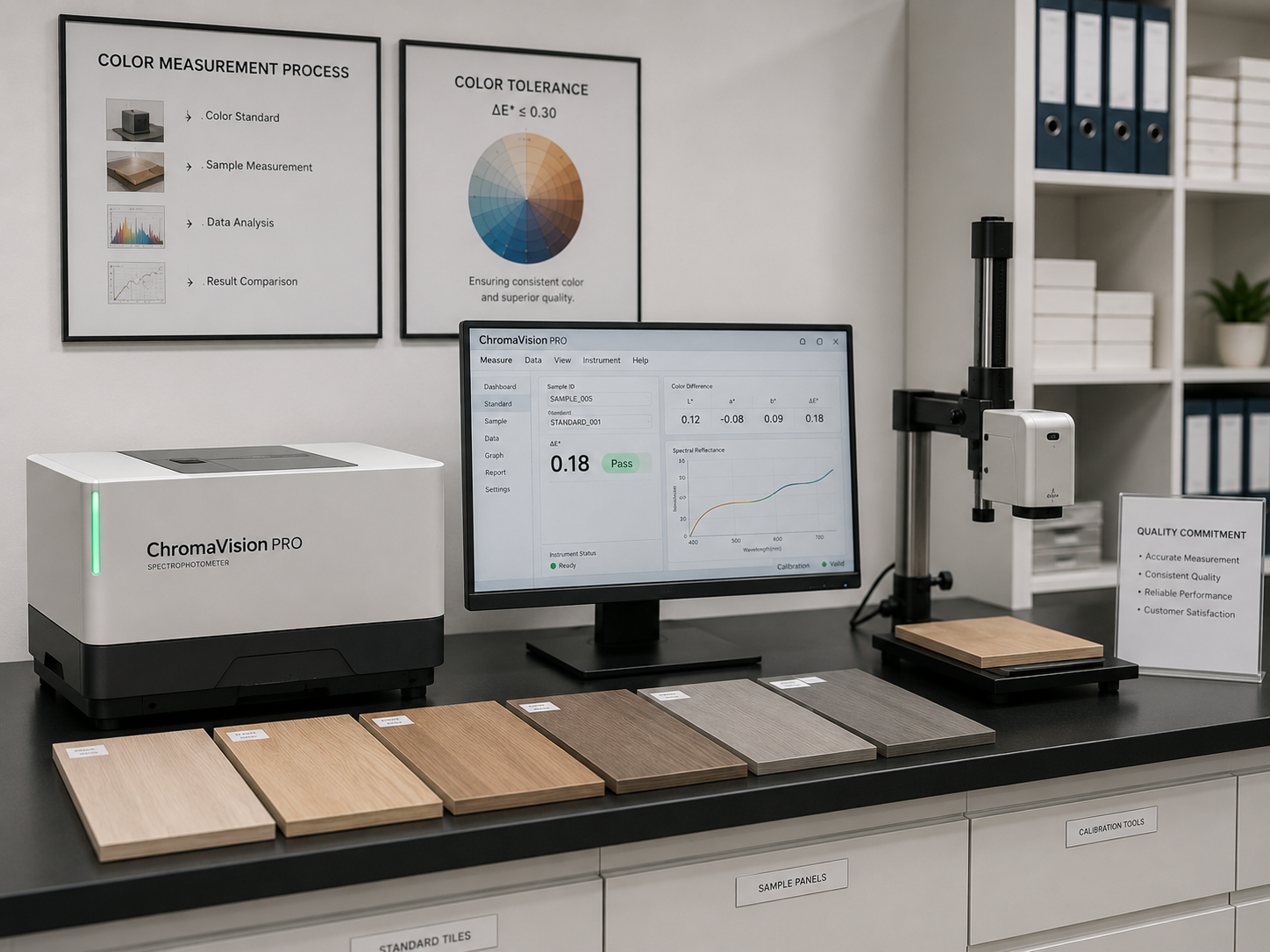

CHROMAVISION PRO --
OUR COLOR VERIFICATION SYSTEM
We don't estimate color. We measure it.

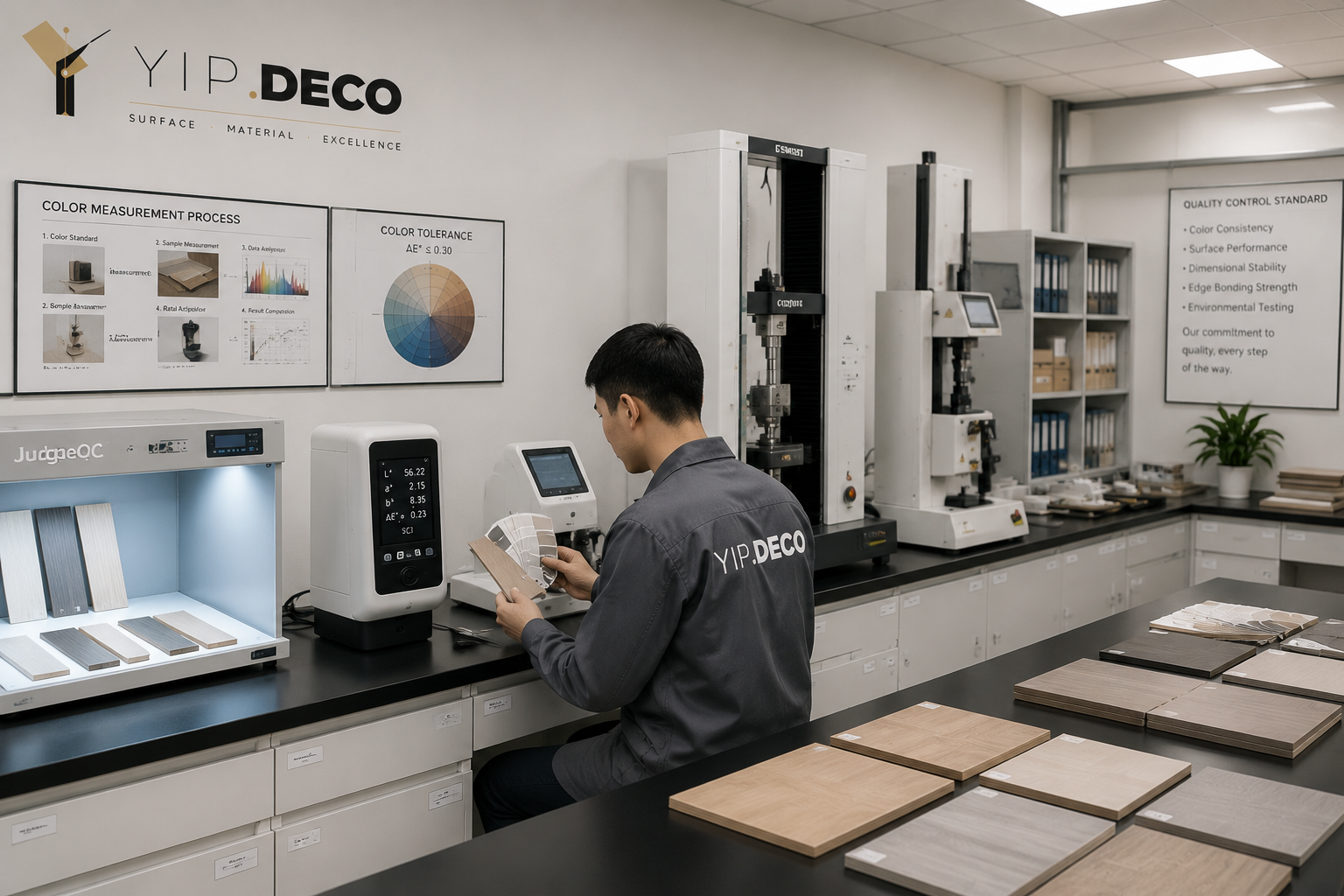

Our in-house color lab uses the ChromaVision PRO spectrophotometer system to verify every color match under D65 standard illuminant. Every edge banding color is measured against its corresponding surface foil -- ensuring ΔE ≤ 1.0 not just between batch and standard, but between edge and surface.
D65
Standard Illuminant
Industry-standard daylight simulation for color measurement
L*a*b*
CIE Color Space
Three-axis color measurement: lightness, red-green, yellow-blue
ΔE≤1
Tolerance
Invisible to human eye -- verified instrumentally
100%
Every Batch
Not sampled. Not spot-checked. Every production batch measured.
ChromaVision PRO spectral analysis -- 16-point measurement per sample
CERTIFIED MATERIALS &
VERIFIED QUALITY
Group 1 -- Edge Banding Compliance
REACH
EU chemical compliance. SVHC all ND or ≤ 0.1%. Phthalates ND. Safe for EU furniture markets.
RoHS
Hazardous substance restriction. Lead, cadmium, mercury, chromium VI all below detection limits.
SGS Tested
Third-party testing for chemical composition, peel strength, UV color fastness (grey ≥ 4 / 500 hr).
Group 2 -- Surface Foil & Panel Compliance
CARB P2
California formaldehyde emission standard. Applicable to laminated panels (not edge banding).
E0 / E1
European formaldehyde classification. Available on panel substrates.
FSC
Forest Stewardship Council certification. Available on wood-based panels and veneer.
Group 3 -- Company & Quality System
ISO 9001:2015
Quality management system. Documented processes from raw material through finished product. Full batch traceability.
SGS Factory Audit
Third-party facility audit confirming production environment, equipment calibration, and process compliance.
WHAT SHIPS WITH EVERY ORDER
No exceptions. No extra charge. Every shipment includes full documentation.
Batch Certificate of Analysis (COA)
ΔE values, thickness, peel strength per batch
Color Measurement Data
Spectrophotometer readings per roll/sheet
Material Safety Data Sheet (MSDS)
Chemical composition and handling
Loading Photo Documentation
Timestamped photos of packing and container loading
Third-party SGS test reports available on request for specific batches. SPC thickness charts available for orders > 5,000 meters.
QUALITY IS NOT A DEPARTMENT.
IT'S HOW WE OPERATE.
Request a sample and see the quality for yourself. Every sample ships with the same test documentation as bulk orders.
